The Lawson 10 HP Air Compressor Package is available in 80- or 120-gallon capacities and is suitable for a wide range of applications.

When selecting an air compressor for your screen printing press, two primary measures of power matter: horsepower (HP) and cubic feet per minute (CFM). Larger Workhorse-Lawson automatic presses require a 10 HP compressor. CFM requirements vary by machine, so consult a Lawson representative to ensure proper operation.

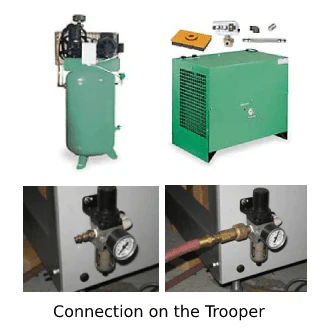

This Air Compressor Package includes an air compressor and an air dryer/chiller. Compression produces moisture, and without an air dryer/chiller, humid air can cause rust and damage to your screen printing press. The dryer/chiller helps protect your equipment, ensuring a longer lifespan and smoother operation.

Air Compressor, 10.0 HP, 80 Gallons

Free Air Flow @ 175 PSI: 34.8 CFM
Phase: Three
Voltage Rating: 230/460 Volts
Current Rating: 28/14 Amps
Tank Capacity: 80 gallons
Tank Type: Vertical
Oil Capacity: 4 quarts
Speed: 740 RPM
Dimensions: 66.75" H x 42.5" L x 30" W
NPT Outlet: 3/4 inch (F)
Weight: 860 pounds

Air Compressor, 10.0 HP, 120 Gallons

Free Air Flow @ 175 PSI: 34.8 CFM
Phase: Three
Voltage Rating: 230/460 Volts
Current Rating: 28/14 Amps
Tank Capacity: 120 gallons
Tank Type: Horizontal
Oil Capacity: 4 quarts
Speed: 740 RPM
Dimensions: 54" H x 72.5" L x 24" W
NPT Outlet: 3/4 inch (F)
Weight: 875 pounds

Dry Air System

Air Flow @ 35°F Dew Point, 125 PSIG: 34.0 CFM
Air Flow @ 35°F Dew Point, 175 PSIG: 40.0 CFM
Power Rating: 0.5 HP
Female NPT Inlet/Outlet: 1 inch
Maximum Air Compressor Power: 10 HP
Voltage @ 60 Hz: 115 Volts
Dimensions: 27" H x 20" D x 30" W
Weight: 160 pounds

Air Compressor Packages
