In-Line Numbering Machine: Efficient Athletic Number Printing

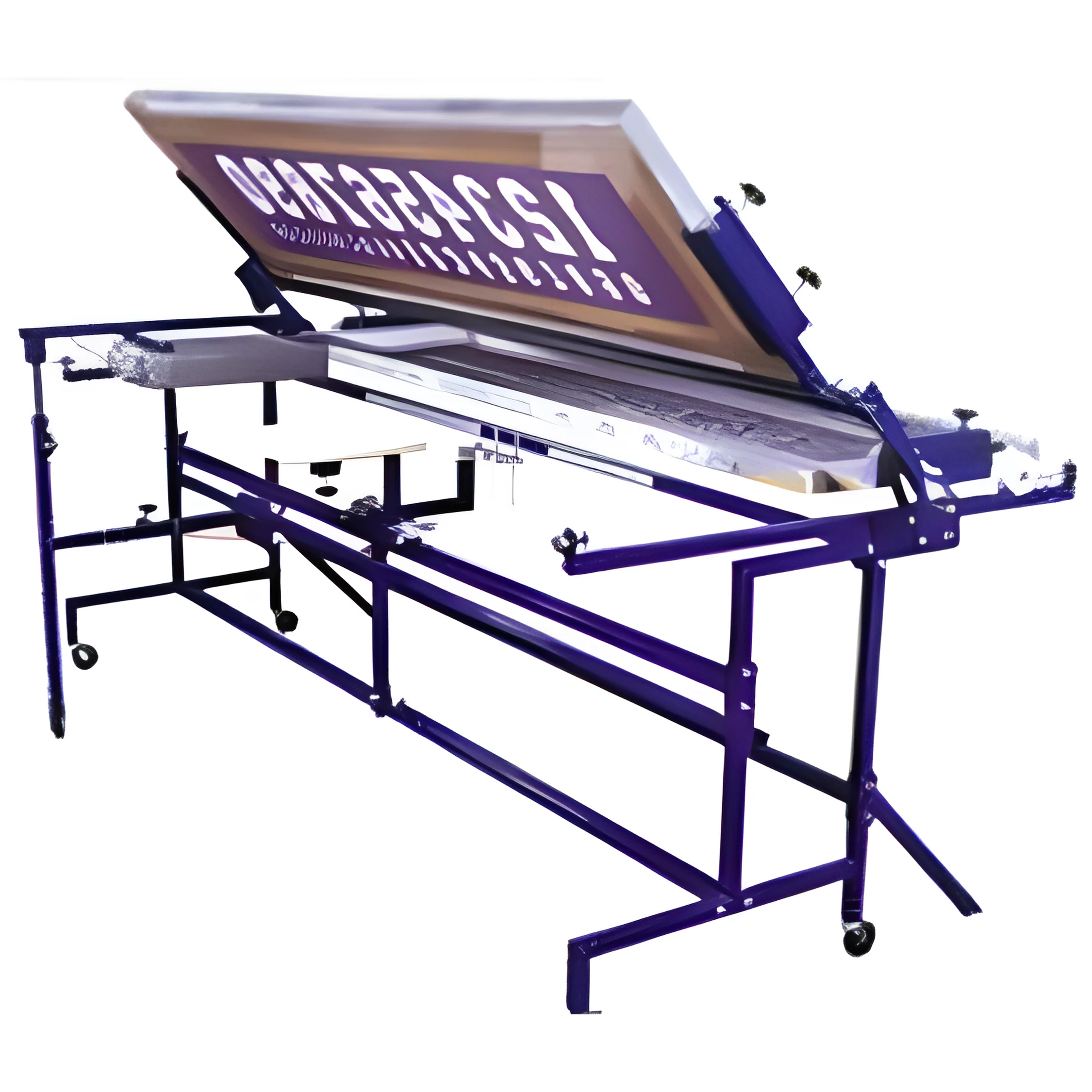

The Lawson In-Line Numbering Machine is ideal for printers where numbering garments is a significant part of their business. Constructed from sturdy tubular steel, this press offers a reliable base. It allows printing of one- or two-color numbers from 0 to 99. For two-color numbers, the press holds two screens with pre-exposed numbers from 0 to 9.

One screen is attached in a standard clamshell configuration, pivoting up and down over the platen, controlled by gas shocks. The second screen moves horizontally on nylon rollers, allowing it to slide over the platen while the first screen operates in clamshell mode. Both screens are pre-registered and exposed at the factory for precise alignment.

The platen is a standard wood design with a laminate covering, attached via a support arm on rollers. This allows the platen to be positioned under the desired number for printing.

The registration system uses a visual grid along the press’s length for each numbering position. A guide on the platen support arm aligns with the grid, ensuring accurate placement for single-digit, left-digit, or right-digit printing in double-digit numbers. This system enables quick and precise platen positioning.

The visual registration system is easy to learn, allowing one- and two-color numbers from 2" to 12" to be printed quickly and accurately.

In addition to the two ready-to-use screens included with the press (with your choice of style), additional screens with various numbering styles and sizes are available. You can also purchase film positives for any of Lawson’s available styles instead of pre-exposed screens.

Floor Space: 5' deep x 8.5' wide

Reasons to Buy the Lawson In-Line Numbering Machine:

Designed for production numbering applications
Minimal floor space required
Fast color changes and easy cleanup
Many optional features available
Affordable pricing

Silk Screen Numbering Machine Packages:

Total Two-Color Numbering Machine Package (716-800-1-EA):

Eight screens (exposed with choice of lettering style, 2"–12")
Four platens: one large, one adult, one youth, one sleeve
Nine squeegees

Quartz Numbering Flash Unit (716-800-8-EA):

Highly recommended for two-color numbering
120 volts, 20 amps; attaches to the press, slides

Two-Color Numbering Machine, Two Screens (716-800-4-EA):

Two screens (exposed with choice of lettering style; standard sizes: 2", 3", 8")
Three platens: one adult, one youth, one sleeve
Four squeegees

Two-Color Numbering Machine, Four Screens (716-800-3-EA):

Four screens (exposed with choice of lettering style)
Three platens: one adult, one youth, one sleeve
Four squeegees

Two-Color Numbering Machine, Six Screens (716-800-2-EA):

Six screens (exposed with choice of lettering style)
Three platens: one adult, one youth, one sleeve
Four squeegees

One-Color Numbering Machine:

One screen (exposed with choice of lettering style)
Three platens: one adult, one youth, one sleeve
Two squeegees

Lawson Athletic Numbering Attachment System
